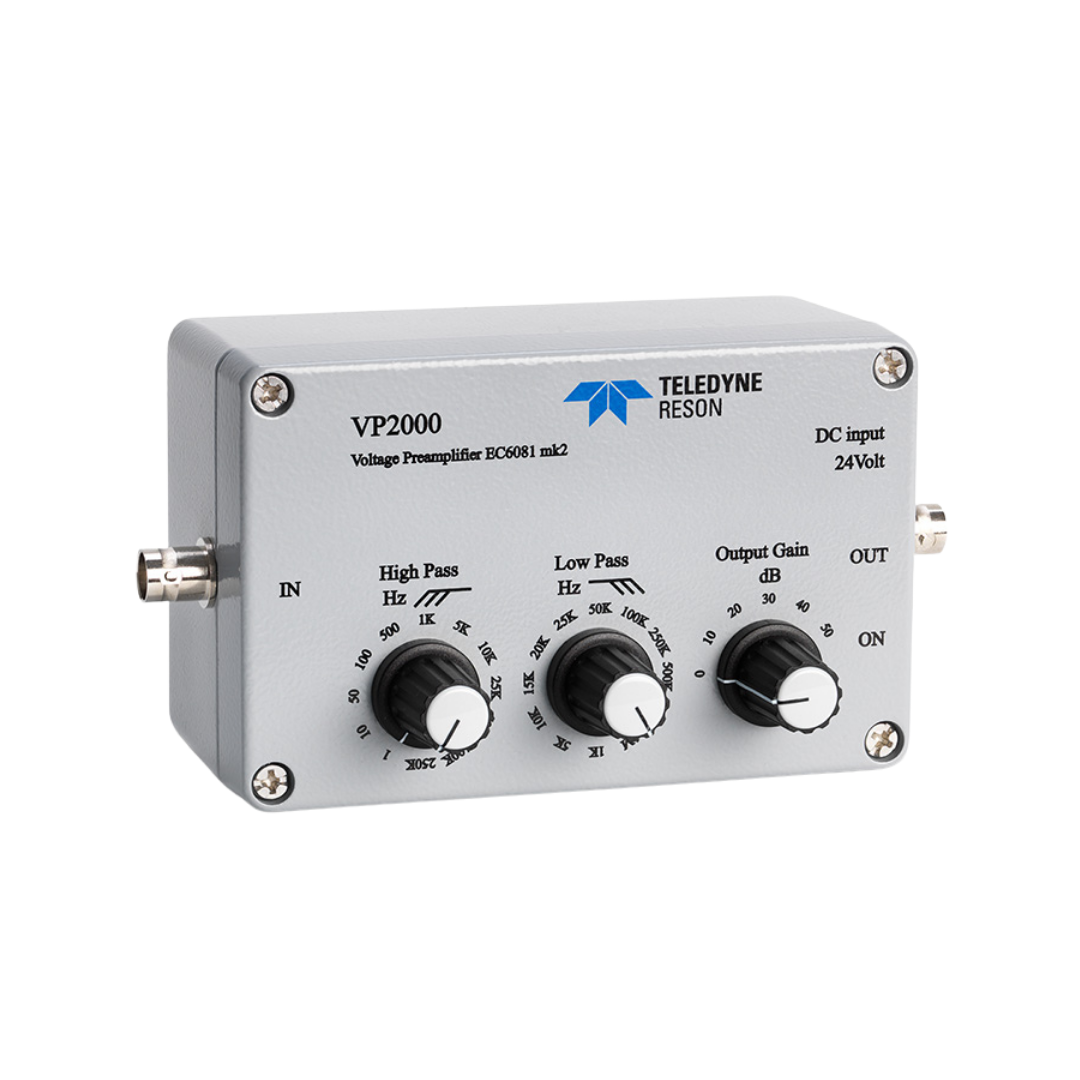

The EC6081 mk2 (VP2000) is a 1MHz bandwidth voltage preamplifier with bandpass filter that is designed for uses in conjunction with piezoelectric hydrophones. VP2000 offers excellent low-noise performance over the entire frequency range; and adjustable gain selection. A range of 12 high-pass and 12 low-pass filters are available, these allow ideal band pass filter settings.
Key Features:
• 1Hz to 1MHz bandwidth
• Options of 12 high-pass filters and 12 low-pass filters
• Excellent low-noise characteristic
• Hi-Pass filters 1Hz-250kHz
• Lo-Pass filters 1kHz-1MHz
• Output gain 0-50dB (6 levels)
• 100M-Ω input impedance /10 Ω output impedance
• Splash proof and portable
• Now with integrated batteries
